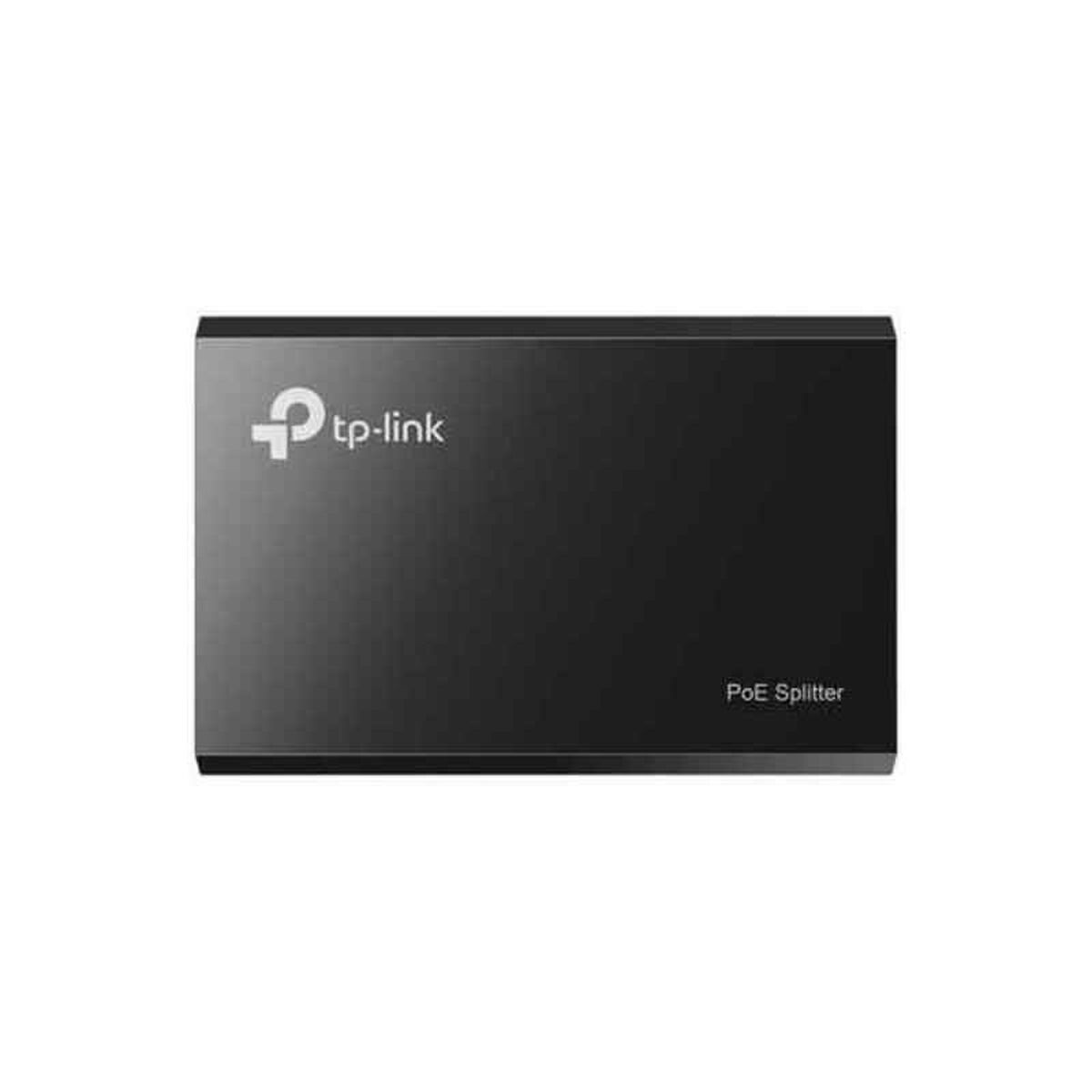

Splitter TP-Link TL-POE10R v4

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Splitter TP-Link TL-POE10R v4 at an unbeatable price.

The TP-Link TL-POE10R v4 is a PoE splitter designed to separate power and data in Ethernet networks using Power over Ethernet technology according to the IEEE 802.3af standard. This device enables powering network equipment that does not directly support PoE while maintaining a stable data connection with transfer speeds up to 100 Mbit/s, compatible with Gigabit Ethernet and Ethernet LAN interfaces. Its output power is 12 W, sufficient to power devices such as IP cameras, wireless access points, or VoIP phones, facilitating installation without additional electrical cables. It is available in two color options, white and black, adapting to different environments and aesthetic preferences. Its compact design, measuring 81 mm wide, 52 mm deep, and 24 mm high, allows easy integration into tight spaces or complex setups. Additionally, it complies with FCC and CE certifications, ensuring quality and safety for professional or home use. In summary, the TL-POE10R v4 is a practical solution for managing power supply over Ethernet networks, optimizing infrastructure and reducing the need for extra connections.

• Colour:
  • White
  • Black
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • Ethernet LAN
  • RJ45
  • PoE x 1
• Characteristics:
  • Non-stick
  • Battery operated
  • LED in operation indicator
  • Plug & Play
• Platform: Windows
• Voltage: 12 V
• Ports: 8
• Power: 12 W
• Remote control: No
• Working range for humidity: 10 % - 90 %
• Speed: 1000 Mbps
• Approx. temperature: -40º / 70º

TP-LINK’s PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK's TL-SG3424P, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.

• Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3u
• Product colour: Black
• LED indicators: Power
• Plug and Play: Y
• Certification: FCC, CE
• Ethernet LAN (RJ-45) ports: 2
• RJ-45 input ports: 1
• RJ-45 output ports: 1
• DC-out jack: Y
• Power over Ethernet (PoE): Y
• Input voltage: 5, 9, 12 V
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Width: 80.8 mm
• Depth: 54 mm
• Height: 24 mm
