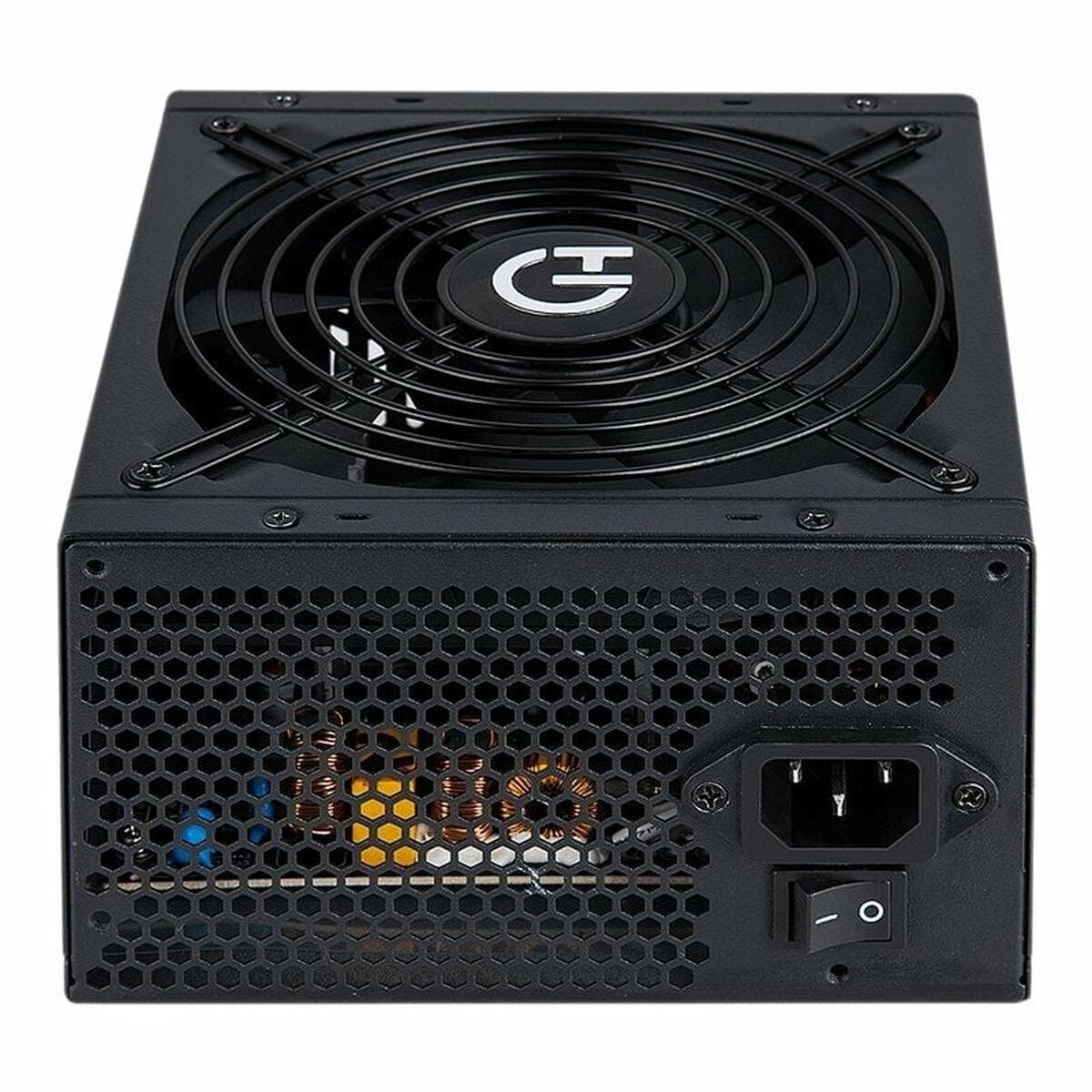

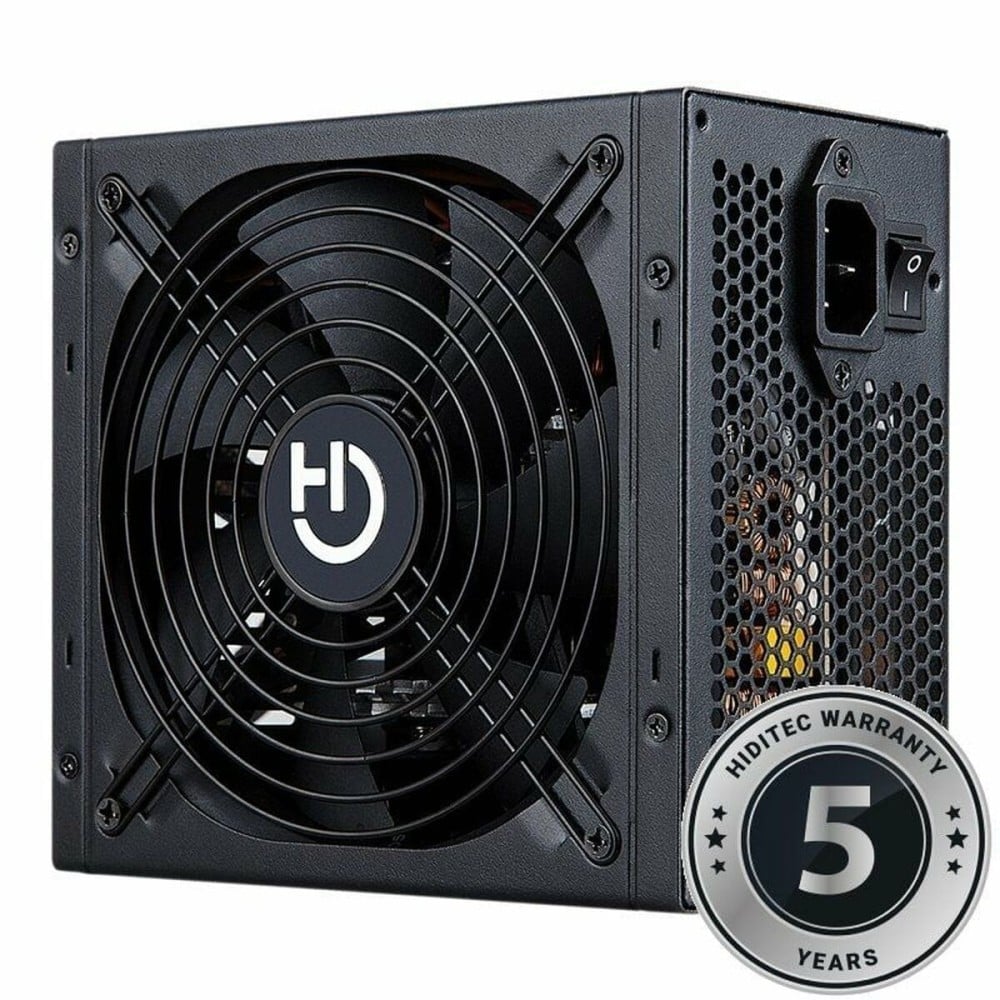

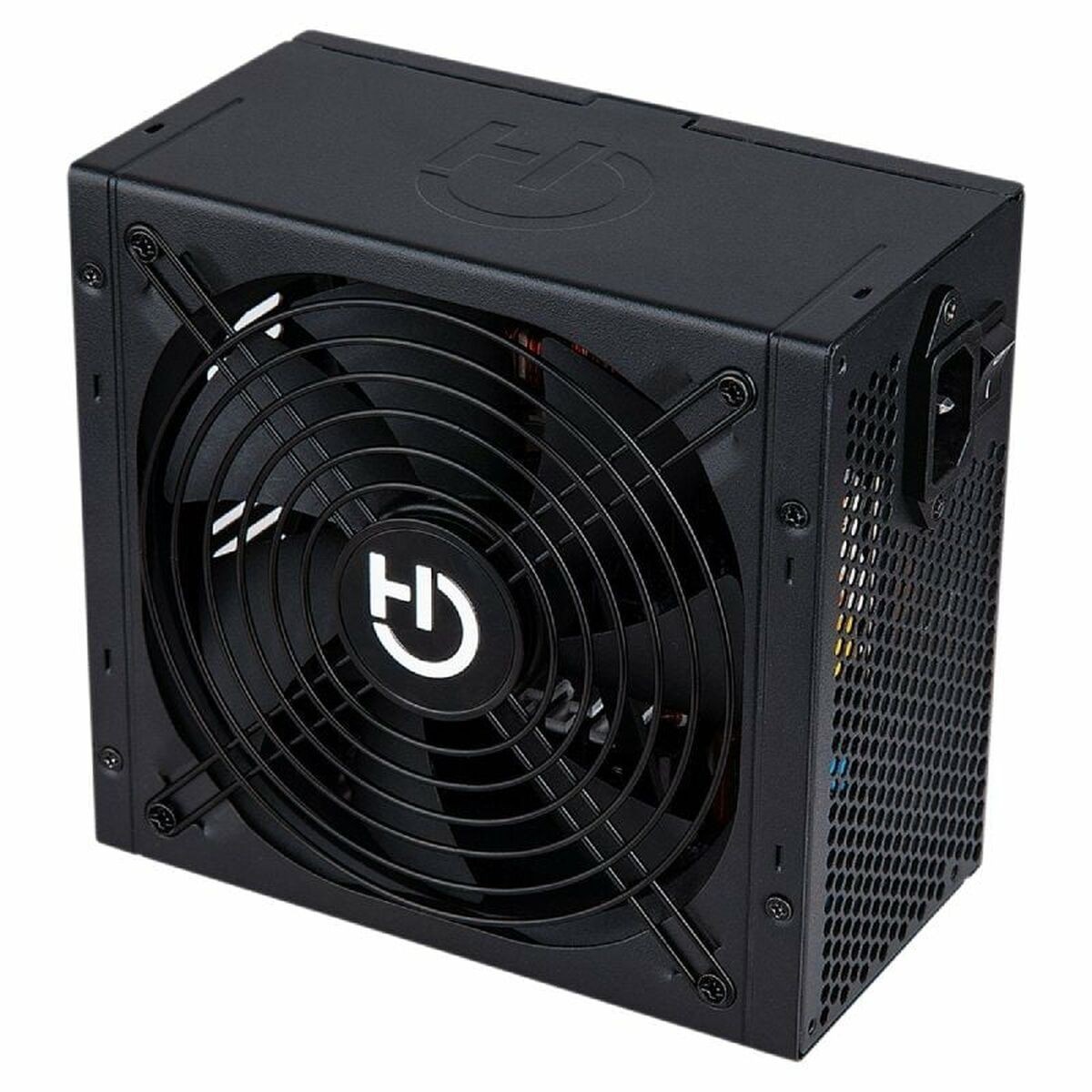

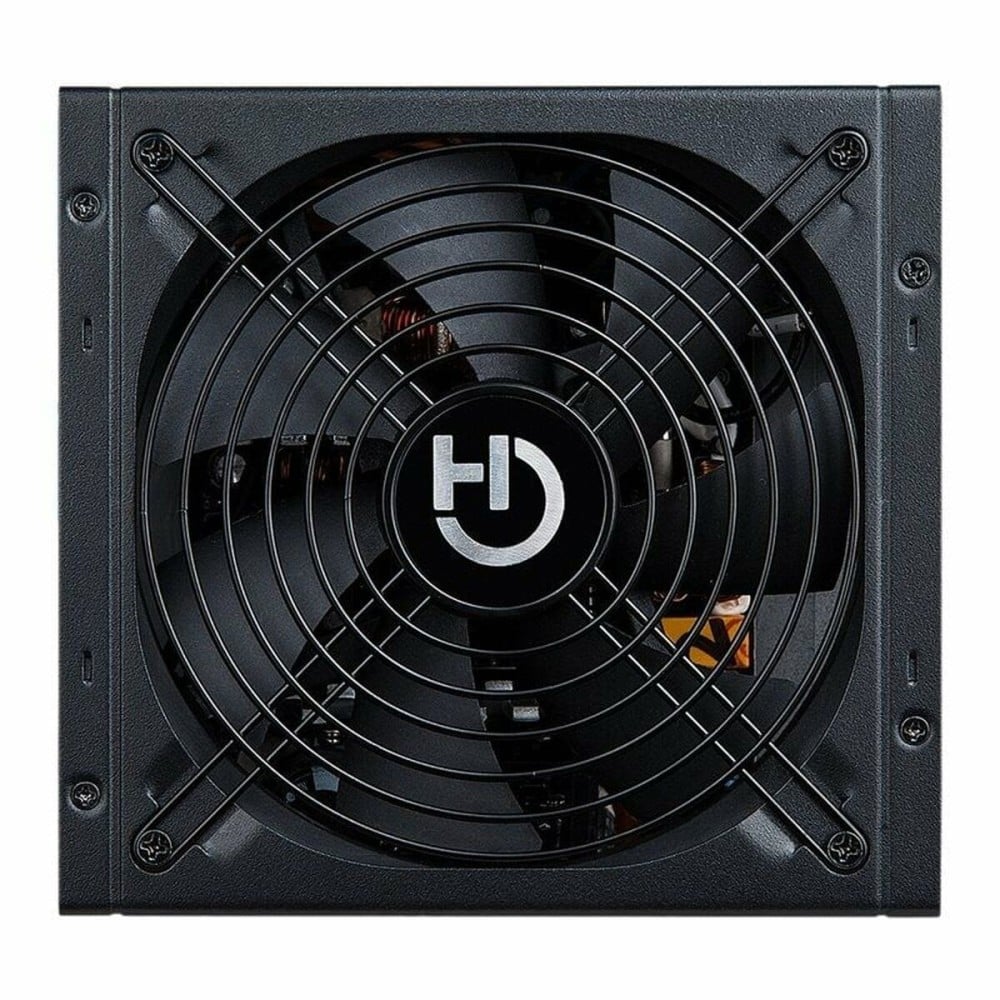

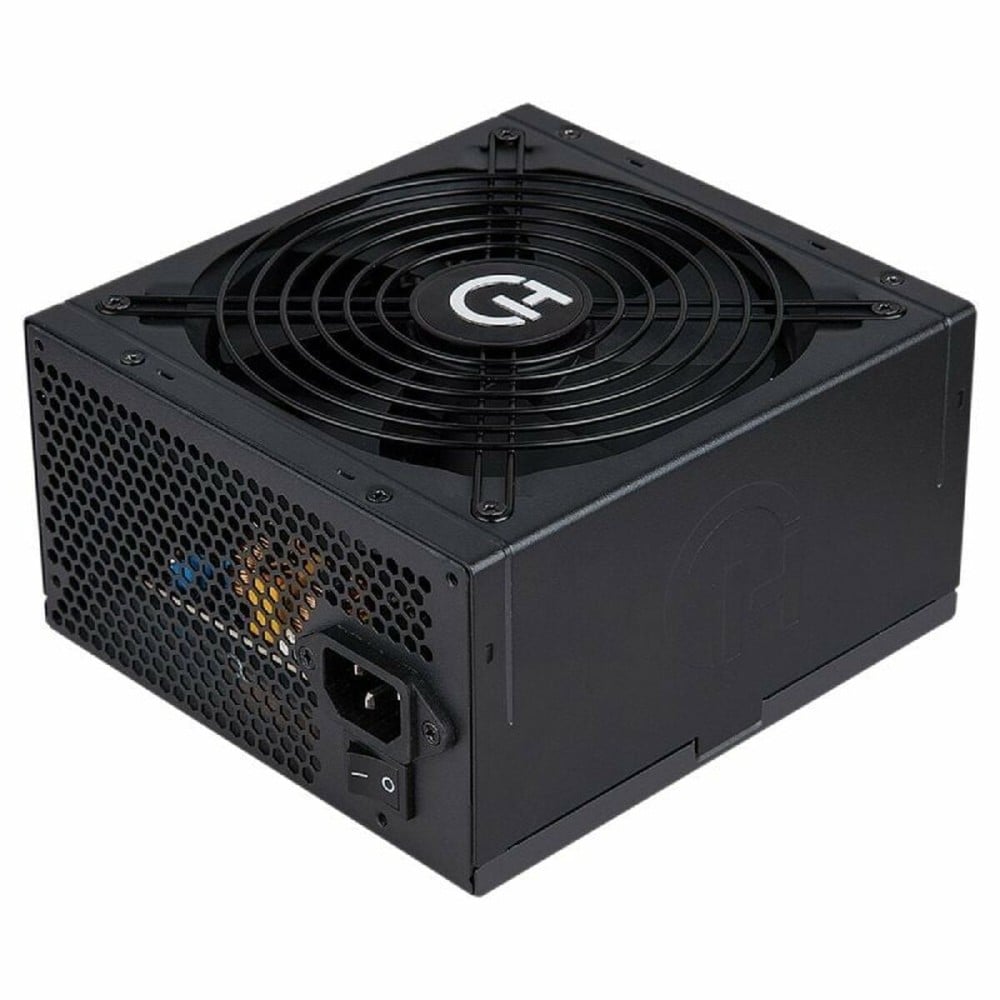

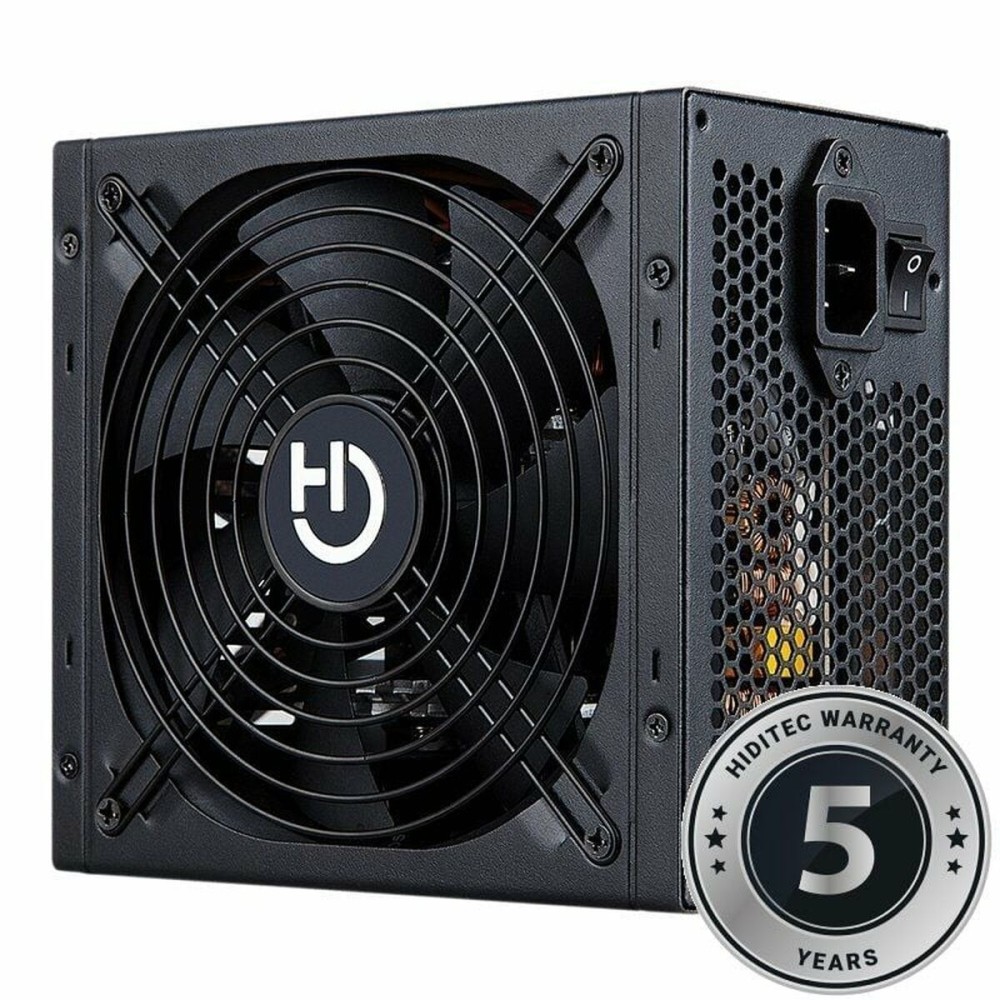

Power supply Hiditec PSU010009 ATX 550 W 80 Plus Bronze

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Power supply Hiditec PSU010009 ATX 550 W 80 Plus Bronze at an unbeatable price.

The Hiditec PSU010009 power supply is an essential component for computer systems requiring security and energy efficiency, designed to deliver stable performance with a maximum power of 550 W. Certified with the 80 Plus Bronze standard, it ensures high energy conversion efficiency, minimizing electrical waste while reducing heat generation and power consumption, which helps extend equipment lifespan and optimize operation. Additionally, it complies with RoHS and CE regulations, ensuring its materials and manufacturing meet European safety, environmental health, and electromagnetic compatibility standards. Its black design and function as a DC/DC power supply make it ideal for integration into a wide range of computer configurations, providing the necessary current conversion for a reliable and consistent supply. This power supply is intended for users who value energy efficiency and certification in their components, seeking a balance between technical quality and regulatory compliance for desktop systems or specific power solutions. In short, the Hiditec PSU010009 represents a solid, standards-compliant option to power electronic components safely and efficiently.

• Type: Power supply
• Frequency:
  • 50/60 Hz
  • 50 - 60 Hz
• Approx. dimensions: 15 x 8,5 x 16 cm
• Connections:
  • 20/24 pin MB x 1
  • SATA x 6
  • 12V 8 pin x 1
  • PCIe 6+2 pin x 2
  • FDD x 1
  • MOLEX x 3
  • PCI Express x 2
  • 24 PIN x 1
  • Molex 4 PIN x 3
  • 8-pin x 1
• Ø 13 cm: Ø 14 cm
• Type of plug: Plug EU
• Product with plug: Yes
• Format: ATX
• Recommended use:
  • Desktop PC
  • PC
• Width:
  • 150 mm
  • 15 cm
• Version ATX: 2.4
• Characteristics: Active PFC
• Ventilator:
  • Ø 14 cm
  • 1
• Form factor: ATX
• Power: 550 W
• Certificate:
  • 80 Plus Bronze
  • RoHS
  • CE
• Colour: Black
• Year: 2018
• Voltage: 230 V
• Cable length:
  • 1 m
  • 500 cm
• Connectors: Diskette unit
• Compatible: ATX
• Amperage:
  • 6 A
  • 15 A
• Weight: 1,7 kg
• AC input voltage: 230 V

High-efficiency energyThe BZ series has an 80PLUS BRONZE certificate and top quality components ready to provide stable and high quality power in high performance equipment.It incorporates a 140 mm ultra-quiet fan to provide greater air flow inside.80Plus Bronze CertifiedBZ power supplies have an 80PLUS BRONZE certificate, which guarantees an efficiency of more than 85% in any load and achieves lower consumption and greater durability of all the components.Heat emissions will be reduced with more efficient working, allowing the fan to work at a lower speed, so the noise produced by the power supply will be virtually imperceptible.It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.High-performance capacitorsThe BZ series is made from high-performance capacitors to provide maximum reliability and durability in very demanding conditions.The BZ range offers a durability greater than 80.000 hours of operation.Compatible with the range of Intel® Haswell™ processors which set new standards in terms of energy efficiency by reducing CPU power consumption to only 0.05A, requiring the PSU to maintain a stable voltage at low power.Ultra-silent 140mm fanThe BZ series has an ultra-quiet 140 mm fan that will allow more air flow inside.The 140 mm fan provides more air flow running at lower revolutions, so in addition to making the noise of the fan virtually imperceptible, greater efficiency and durability will be achieved with all the components.Gaming designWith a new exterior design and fully lacquered in black, the BZ power supplies have a more robust finish.Its 900mm long shielded cables will enable orderly installation in any chassis and provide excellent safety and durability thanks to their shielded covering.

• Total power: 550 W
• AC input voltage: 230 V
• AC input frequency: 50 - 60 Hz
• Power Factor Correction (PFC) type: Active
• Max output current (+3.3V): 20 A
• Max output current (+12V): 45 A
• Max output current (+5V): 20 A
• Max output current (-12V): 6 A
• Max output current (+5Vsb): 15 A
• Efficiency: 85%
• Power protection features: Over voltage, Overload, Under power
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 3
• Motherboard power cable length: 50 cm
• Number of SATA power connectors: 6
• SATA power cable length: 600,750,900 mm
• Peripheral (Molex) power cable length: 600,750,900 mm
• PCI Express power connectors (6+2 pin): 2
• CPU power cable length: 57 cm
• Floppy disk drive connector: Y
• Floppy disk drive cable length: 100 cm
• CPU power connectors (8-pin): 1
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• 80 PLUS certification: 80 PLUS Bronze
• ATX version: 2.4
• Silent mode: Y
• Mean time between failures (MTBF): 80000 h
• Certification: CE
• Product colour: Black
• Cooling type: Active
• Fan diameter: 14 cm
• Number of fans: 1 fan(s)
• Width: 150 mm
• Depth: 160 mm
• Height: 85 mm
• Weight: 1.75 kg
• Package type: Box
• Sustainability certificates: RoHS
