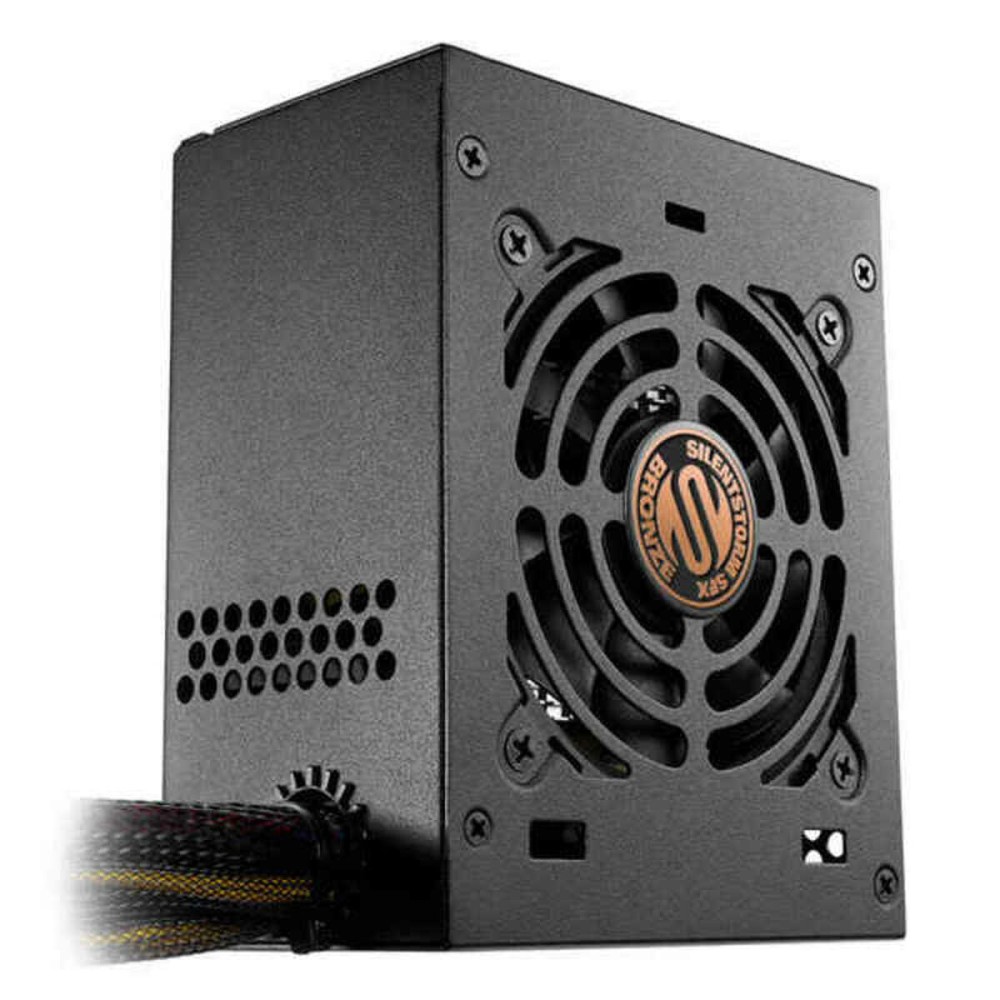

Power supply Sharkoon SilentStorm SFX Bronze 450 W

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Power supply Sharkoon SilentStorm SFX Bronze 450 W at an unbeatable price.

• Power:
  • 450 W
  • 6 W
• Type: Power supply
• Product with plug: Yes
• Type of plug: Plug EU
• Connections:
  • 24 PIN x 1
  • Mini USB
• Colour: Black
• Characteristics: On/off interrupter
• Recommended use:
  • Desktop PC
  • PC
• Ventilator: 1
• Connectors:
  • Pci Express, 6 pins
  • Diskette unit
• Frequency: 50 - 60 Hz
• Includes: Instruction manual
• Voltage: 100 - 240 V
• Certificate: 80 Plus Bronze
• Width: 10 cm
• Approx. diameter: Ø 80 cm
• Form factor: SFX

SFX Power Supply with “80 PLUS Bronze” CertificationThe SilentStorm SFX Bronze series is an “80 PLUS Bronze” certified SFX power supply series for users looking for the best price-performance. It offers outstanding efficiency of over 85 percent under 50 percent load and meets the strict requirements of the independent 80 PLUS Initiative “PLUG LOAD SOLUTIONS” for the Bronze certificate. The compact dimensions total to only 125 x 100 x 63 mm. The power supplies are available in 450 Watt or 350 Watt. Power supplies can be installed into conventional ATX cases using the enclosed ATX mounting frame.Sufficient Connection OptionsThe Intel HASWELL compatible power supply series in the 350 Watt version provides, in addition to the standard CPU and mainboard connectors, a 6-pin PCIe connector, two SATA, two IDE and a Floppy connector. The SilentStorm SFX Bronze 450 Watt also offers an additional SATA connector as well as a 6+2-pin PCIe connector.Effective CoolingThe internal power supply components of the SilentStorm SFX Bronze series are cooled by an effective 80 mm fan.Suitable Protective Circuit with Three Year GuaranteeThe SilentStorm SFX Bronze power supply series features an overload, overvoltage, undervoltage as well as short circuit protection and are certified with current energy and environmental standards. The guarantee period is three years.High Energy Efficiency This power supply is “80 PLUS Bronze” certified and meets all requirements with an efficiency of at least 85 % under 50 % load and 82 % under both 20 % and 100 % load.

• Total power: 450 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Input current: 7 A
• Maximum input current (@110V): +12V,+3.3V,+5V,+5Vsb,-12V
• Combined power (+3.3V): 120 W
• Combined power (+12V): 432 W
• Combined power (+5V): 120 W
• Combined power (-12V): 6 W
• Combined power (+5Vsb): 15 W
• Max output current (+3.3V): 21 A
• Max output current (+12V): 36 A
• Max output current (+5V): 22 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 3 A
• Power protection features: Over power, Over voltage, Short circuit, Under voltage
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 2
• Number of SATA power connectors: 3
• PCI Express power connectors (6-pin): 1
• PCI Express power connectors (6+2 pin): 1
• CPU power connector (4+4 pin): Y
• Floppy disk drive connector: Y
• Purpose: PC
• Power supply unit (PSU) form factor: SFX
• 80 PLUS certification: 80 PLUS Bronze
• Product colour: Black
• Cooling type: Active
• Fan diameter: 8 cm
• Number of fans: 1 fan(s)
• Fan location: Top
• On/off switch: Y
• Width: 125 mm
• Depth: 100 mm
• Height: 63 mm
• Package width: 230 mm
• Package depth: 190 mm
• Package height: 80 mm
• Package weight: 1.5 kg
• Manual: Y
• Housing colour: Black
