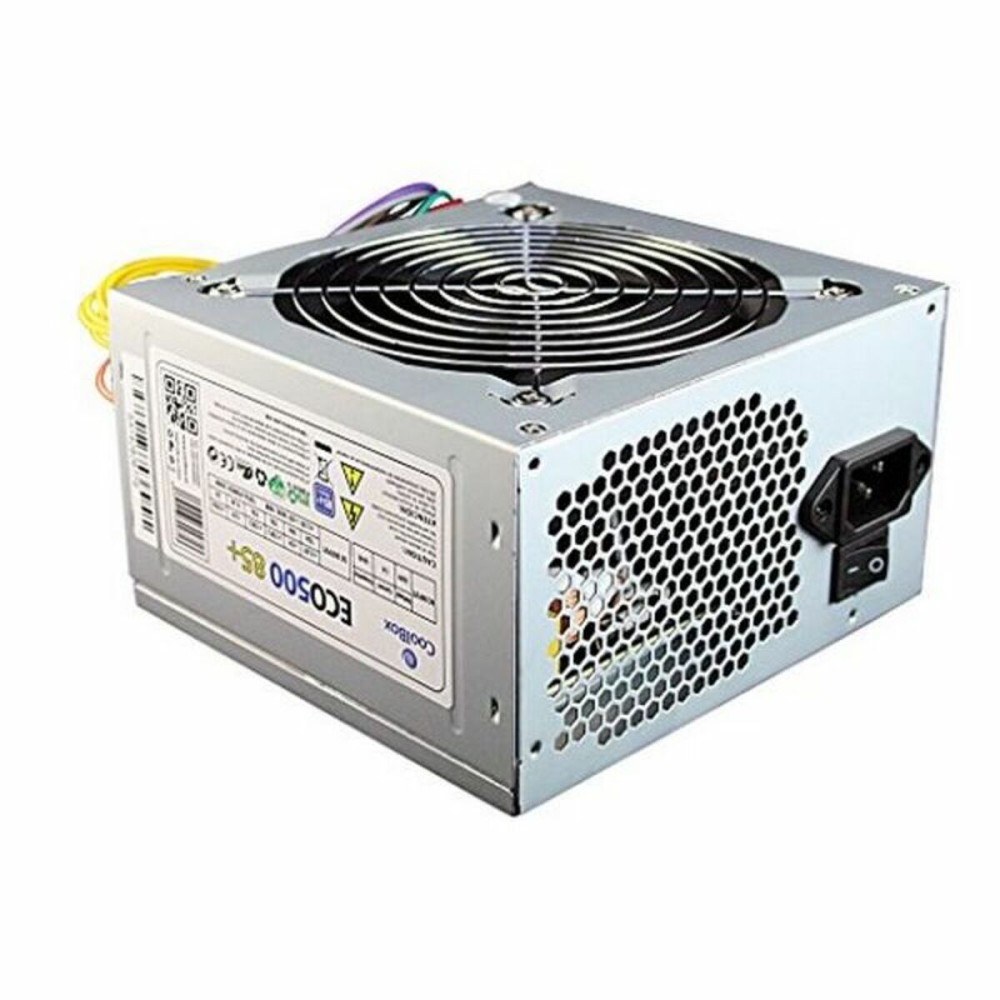

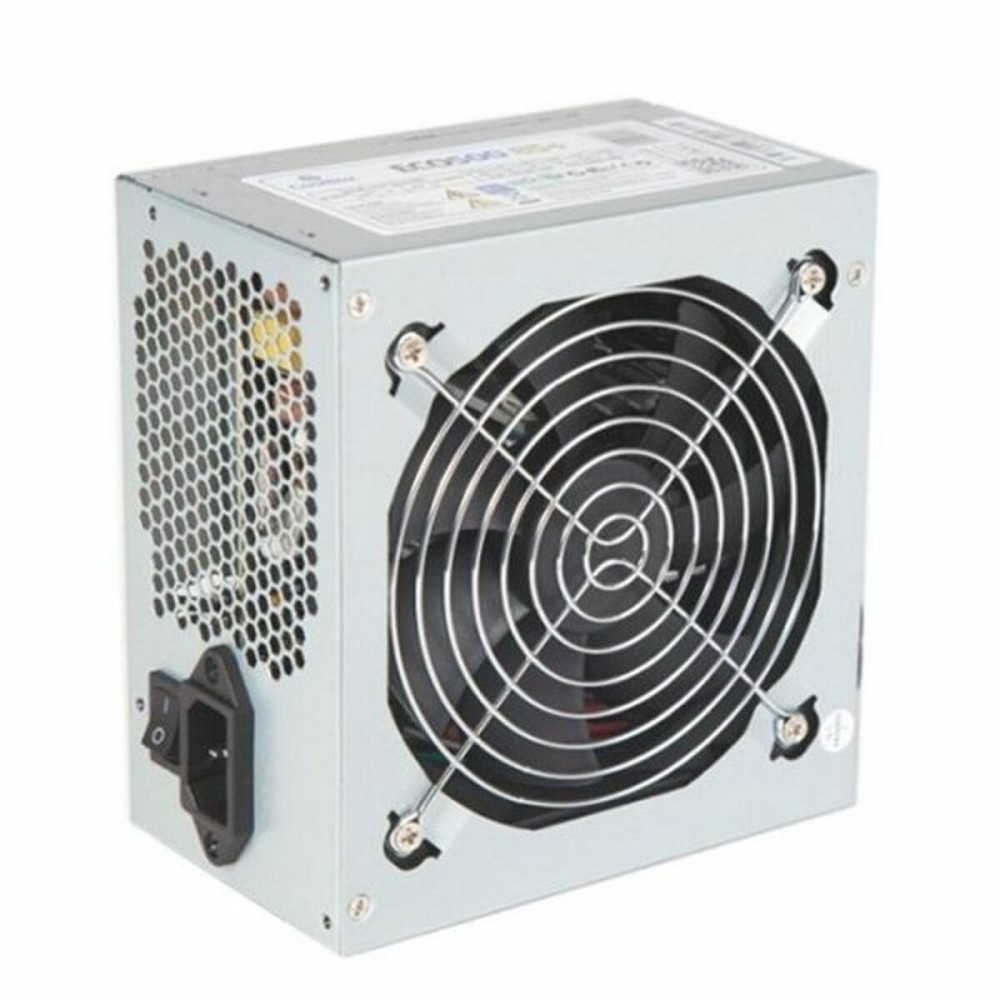

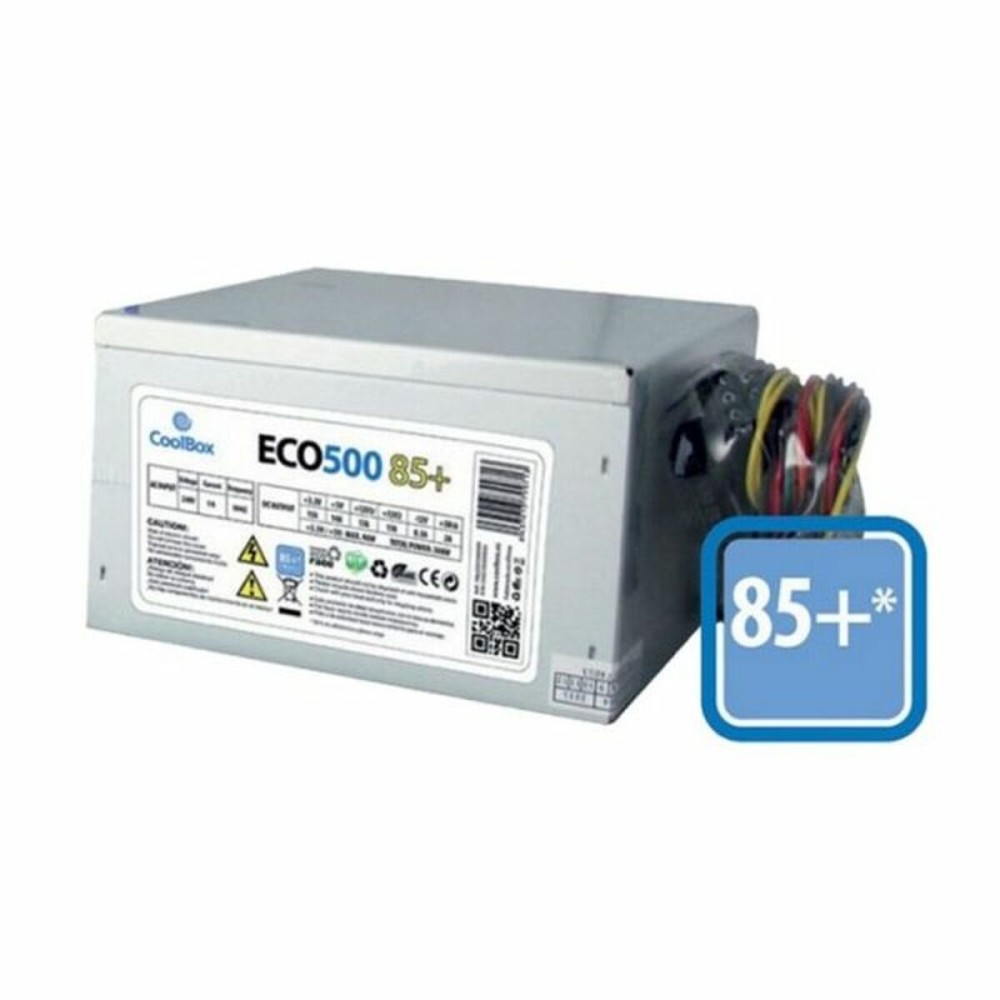

Power supply CoolBox COO-FA500E85 ATX 300 W

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Power supply CoolBox COO-FA500E85 ATX 300 W at an unbeatable price.

• Form factor: ATX
• Ventilator: Ø 12 cm
• Connections:
  • ATX 24 pin x 1
  • SATA x 3
  • Molex HDD x 2
  • PCIe 8 pin x 2
  • 24 PIN x 1
• Voltage: 230 V
• Frequency: 50 Hz
• Approx. dimensions: 15 x 8,6 x 14 cm
• Type: Power supply
• Product with plug: Yes
• Type of plug: Plug EU
• Power: 300 W
• Colour:
  • Black
  • Grey
• Characteristics: On/off interrupter
• Connectors: Diskette unit
• Compatible:
  • ATX
  • PC
• Recommended use: PC
• Amperage:
  • 5 A
  • 2 A
  • 15 A
• Width: 15 cm
• AC input voltage: 230 V

ACTIVE PFC 85% OF FULL LOAD EFFICIENCY

A new line of power supplies which are focused on two main areas, efficiency and reliability. ECO PSU has a careful and ecological design offering high efficiency which means energy saving, long life and enviroment protection for your PC. ECO500 85+ is a reliable option for those systems with multicore processors and advanced graphic solutions with an excellent price-quality performance. Its 12cm fan helps power and silence rates.

- 12 cm. Fan
- Silent
- Easy installation
- Compatible with Intel and AMD
- COMPLIANT RoHS, CE, Energy Saving ErP

85+
It complies 85% efficiency policy.
This device is specifically designed to be installed in any new computer and then to comply with the new efficiency policy, date of 1st of July, 2014.

• Total power: 300 W
• AC input voltage: 230 V
• AC input frequency: 50 Hz
• Input current: 5 A
• Maximum input current (@110V): +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
• Power Factor Correction (PFC) type: Active
• Combined power (+3.3V): 90 W
• Combined power (+5V): 90 W
• Max output current (+3.3V): 15 A
• Max output current (+12V1): 17 A
• Max output current (+12V2): 17 A
• Max output current (+5V): 14 A
• Max output current (-12V): 0.3 A
• Max output current (+5Vsb): 2 A
• Efficiency: 85%
• Motherboard power connector: 20+4 pin ATX
• Peripheral (Molex) power connectors (4-pin): 2
• Number of SATA power connectors: 3
• PCI Express power connectors (6+2 pin): 1
• CPU power connector (4+4 pin): Y
• Floppy drive power connector: 1
• Purpose: PC
• Power supply unit (PSU) form factor: ATX
• 80 PLUS certification: 80 PLUS Bronze
• RoHS compliance: Y
• Certification: CE, Energy Saving ErP
• Product colour: Gray
• Fan diameter: 12 cm
• Number of fans: 1 fan(s)
• On/off switch: Y
• Width: 150 mm
• Depth: 86 mm
• Height: 140 mm
