Motherboard Asus 90MB1D00-M1EAYC LGA 1700

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Motherboard Asus 90MB1D00-M1EAYC LGA 1700 at an unbeatable price.

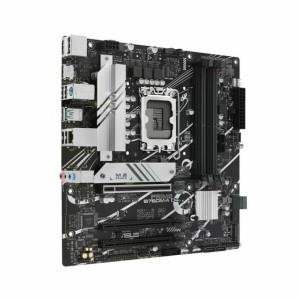

The Asus 90MB1D00-M1EAYC motherboard, also known as Asus Prime B760M-A D4-CSM, offers a balanced and robust solution within the PC motherboard segment, aimed at users who need stable and versatile performance in a compact form factor. This MicroATX (mATX) motherboard is designed for Intel processors with LGA 1700 socket, compatible with a wide range of 12th and 13th generation Intel CPUs, including Intel® Celeron®, Pentium® Gold, and Core™ i3, i5 families, among others. It features the Intel B760 chipset, which supports advanced technologies for general users and professionals seeking efficiency without reaching enthusiast levels. It supports up to 128 GB of DDR4-SDRAM memory across 4 DIMM slots, allowing flexible RAM configurations tailored to multitasking and performance needs. For storage, it includes support for M.2 and SATA III drives, compatible with HDDs and SSDs, and offers advanced RAID options (levels 0, 1, 5, and 10), ensuring both performance and reliability in data management. Connectivity includes multiple high-speed ports, with 4 USB 3.2 and one USB-C port for fast data transfer and connection of modern peripherals. For video output, it has two HDMI interfaces and one DisplayPort, enabling dual monitor setups or high-resolution displays. Networking is handled by a 2.5 Gigabit Ethernet interface that significantly improves bandwidth for high-speed connections, especially useful in professional environments or online gaming requiring low latency and high stability. The combination of these features, along with a micro ATX design that fits smaller cases without losing functionality, makes this motherboard an ideal choice for upgrades or new builds seeking a balance of performance, connectivity, and thermal efficiency. In summary, the Asus Prime B760M-A D4-CSM is a reliable, compatible, and capable motherboard suited to current processing and storage demands in mid-range personal computers.

• Chipset: Intel B760
• Processor Family: Intel
• Socket: LGA 1700
• Connections:
  • M.2
  • USB 3.2
  • PCI Express 3.0
  • Ethernet LAN
  • SATA
  • DisplayPort
  • Jack 3.5 mm
  • RJ45
  • PS/2
  • USB 2.0
  • HDMI
  • 2 x USB 2.0
  • Microphone
  • USB 2.0 x 4
  • SATA x 4
  • PS/2 x 1
  • Jack 3.5 mm x 3
  • M.2 x 2
  • HDMI 2.1 x 1
  • DIMM
  • 3 x USB 3.2 Gen 1 (3.1 Gen 1)
  • 2 x USB 3.2 Gen 2 (3.1 Gen 2)
  • DisplayPort x 1
  • RJ45 x 1
• Form factor:
  • mATX
  • MicroATX
• Memory Type: DDR4
• Type:
  • Motherboard
  • PCI Express 3.0
  • ATX
  • UEFI
• Connectivity: Wi-Fi
• Interface: Gigabit Ethernet
• Memory: 256 MB
• Number of memory slots: 4
• Speakers: 7.1
• Compatible:
  • DDR4-SDRAM
  • HDD/SSD
  • PC
• Not included: WiFi
• Power: 50 W
• Includes: SATA
• Frequency: 2133 MHz
• Internal Memory: 128 GB
