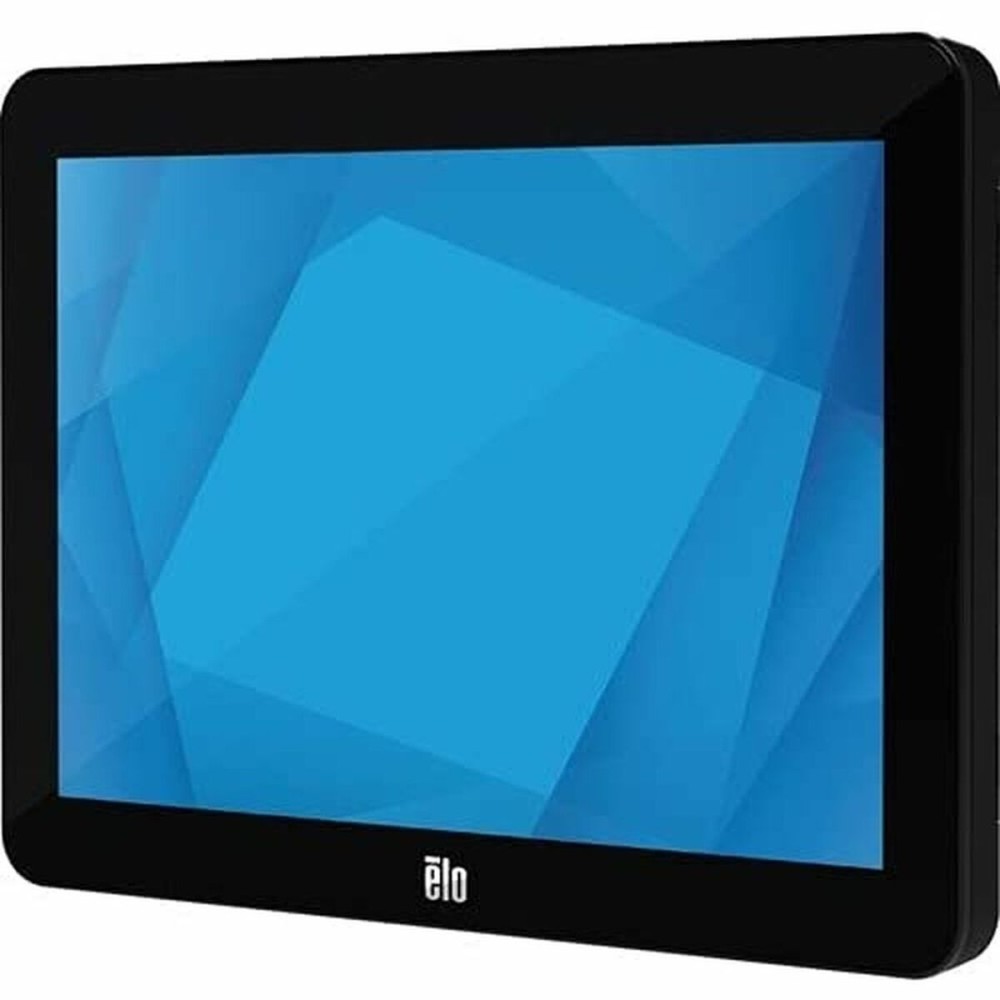

Monitor Elo Touch Systems E155834 HD 10,1"

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Monitor Elo Touch Systems E155834 HD 10,1" at an unbeatable price.

The E155834 from Elo Touch Systems is a touch monitor designed to deliver an efficient visual and interactive experience thanks to its 10.1-inch (25.6 cm) LCD screen with a resolution of 1280 x 800 pixels, providing sharp, clear images in Full HD format. This monitor integrates combined LED, TFT, and LCD technology that boosts brightness up to 315 cd/m², ensuring clear viewing even in brightly lit environments. Its sturdy black design offers versatility for professional or commercial settings, and it includes practical features such as built-in speakers for a complete multimedia experience and connectivity via HDMI, allowing connection to various devices without extra adapters. The touchscreen is a key element, enabling direct and intuitive interaction, ideal for point-of-sale systems, industrial control, or interactive applications. It also stands out for its wall-mounting capability, facilitating integration in spaces where workspace or display area optimization is needed. The result is a versatile monitor that combines a compact size with technologies suited for both touch needs and high-quality visual demands, highlighting the balance between functionality and ease of use in professional applications. This model represents a solid technological solution for users who value visual precision and touch controls on a medium-format screen, with design and connectivity adapted to multiple environments.

• Technology:
  • LED
  • LCD
  • TFT
• Product with plug: Yes
• Type of plug: Plug EU
• Resolution (px):
  • 1280 x 800 px
  • 3840 x 2160 px
• Diagonal of the screen (cm): 25,7 cm
• Connections:
  • HDMI
  • 3
  • VGA D-sub
  • USB
  • VGA
  • USB 2.0 x 3
  • USB-C 3.2 Gen 1 (3.1 Gen 1)
  • USB x 3
• Power: 4 W
• Type: Monitor
• Colour: Black
• VESA: 7,5 x 7,5 cm
• Voltage:
  • 12 V
  • 100-240 V
  • 100 - 240 V
• Screen: 10,1"
• Resolution:
  • HD
  • Full HD
  • 4K Ultra HD
• Characteristics:
  • Touchscreen
  • Integrated speakers
  • Wall mounting
• Frequency:
  • 50-60 Hz
  • 60 Hz
  • 120 Hz
• Aspect ratio: 16:10
• Energy classification:
  • A+
  • A++
• Power supply: DC
• Certificate: RoHS
• AC input frequency: 50-60 Hz
• Power RMS: 4 W
• Accuracy (relative humidity): 20 % - 80 %
• Angle: 170º
• Assembly: VESA

The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.Single Cable ConnectionThe 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.One for You. One for Your CustomersThe 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.Elo Edge Connect™ Lets You do More!Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!EMV CradlesThe ability to take payment is essential to complete a transaction. The 1002L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.Barcode ScannerEnhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.MSRElo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.Mount with FlexibilityCustomers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.Mount with FlexibilityCustomers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.Built-to-LastThe 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

• Display diagonal: 25.6 cm (10.1")
• Display brightness: 315 cd/m²
• HD type: HD
• Display technology: LCD
• Native aspect ratio: 16:10
• Display resolution: 1280 x 800 pixels
• Panel type: TFT
• Response time: 29 ms
• Contrast ratio (typical): 800:1
• Horizontal scan range: 31.5 - 80 kHz
• Viewing angle, horizontal: 170°
• Viewing angle, vertical: 170°
• Backlight type: LED
• LED backlight: Y
• Supported graphics resolutions: 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 800 (WXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
• Viewable size, horizontal: 21.7 cm
• Viewable size, vertical: 13.6 cm
• Display number of colours: 262144 colours
• Product colour: Black
• International Protection (IP) code: IPX1
• Touch technology: Multi-touch
• Touchscreen technology: Projected capacitive system
• Touchscreen type: Multi-user
• Number of simultaneous touchpoints: 10
• Built-in speaker(s): Y
• RMS rated power: 4 W
• Number of speakers: 2
• On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
• Mean time between failures (MTBF): 50000 h
• Built-in USB hub: Y
• USB 2.0 ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• USB Touch port: Y
• USB Touch ports quantity: 1
• HDMI: Y
• HDMI ports quantity: 1
• VGA (D-Sub) ports quantity: 1
• DVI port: N
• Audio input: 1
• Wall mountable: Y
• Height adjustment: N
• Panel mounting interface: 75 x 75 mm
• VESA mounting: Y
• Power supply type: DC
• Power consumption (typical): 7.43 W
• Power consumption (standby): 1.26 W
• Power consumption (off): 0.2 W
• AC input voltage: 100 - 240 V
• AC input frequency: 50 / 60 Hz
• AC adapter output voltage: 12 V
• Energy efficiency scale: A+++ to D
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -20 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 95%
• Certification: Canada cUL, IC Europe CE Japan VCCI United States UL, FCC China CCC Korea, KCC, e-standby Australia RCM Mexico NOM Taiwan BSMI International CB RoHS, China RoHS, WEEE, REACH India BIS Russia EAC
• Sustainability compliance: Y
• Sustainability certificates: RoHS
• Width (without stand): 25 cm
• Depth (without stand): 2.84 cm
• Height (without stand): 16.5 cm
• Weight (without stand): 884.2 g
• Package width: 315 mm
• Package depth: 144 mm
• Package height: 243 mm
• Package weight: 1.83 kg
• Cables included: AC, HDMI, USB
• Energy efficiency class (old): A+
