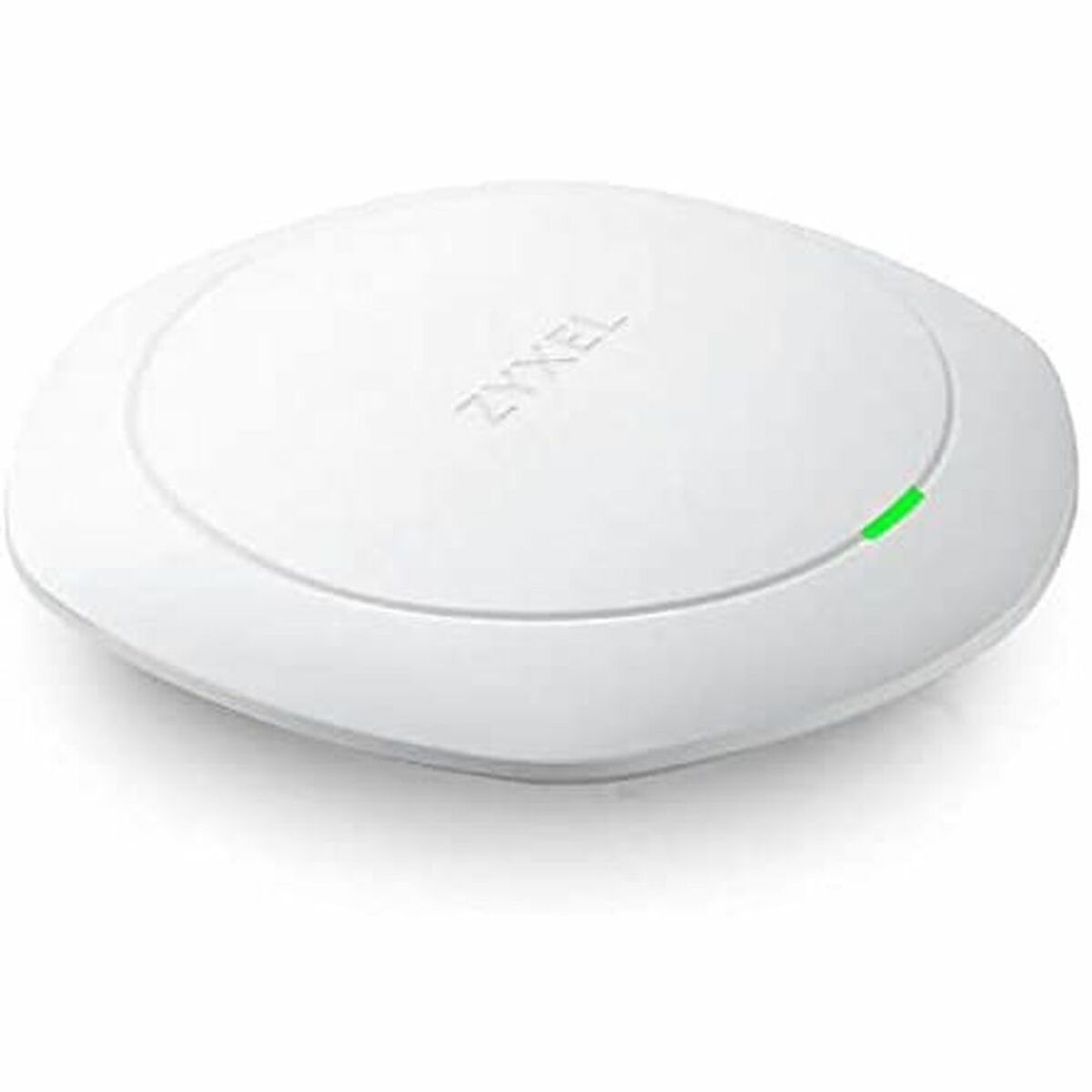

Wifi Antenna ZyXEL WAC6303D-S-EU0101F White

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Wifi Antenna ZyXEL WAC6303D-S-EU0101F White at an unbeatable price.

• Colour: White
• Year: 2018
• Voltage: 12 V
• Ports: 2
• Height: 55 cm
• Connections:
  • RJ45
  • SATA
  • PoE x 1
• AC input: 100-240 V
• Frequency:
  • 50 - 60 Hz
  • 5 GHz
  • 2,4 GHz
• Amperage: 2 A
• Working range for humidity: 10 % - 90 %
• Connectors: Kensington
• Power supply: CC
• Approx. temperature: -40º / 70º

Networking administrators managing busy venues must understand how visitors longed for WiFi and how challenging it is to meet the demands within limited budgets. Zyxel brings affordable and triple-performance 3x3:3 MU-MIMO access point WAC6303D-S which is built with Smart antenna to mitigate co-channel interference in high-density environment. And its embedded BLE Beacon provides insight into your consumers, WAC6303D-S not only resolves the challenge today it thinks for the ever-growing mobility demands tomorrow. MU-MIMO, New Definition of Wi-Fi Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP. Next Generation Transmit Beamforming benefits overall networking Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients. Optimal Wireless Experience WAC6303D-S features Smart antenna technology which is proven able to mitigate co-channel interference, and adaptively adjust antenna patterns to fit in high-density application. Built for Superior performance The WAC6303D-S is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market. Optimized wireless experience with advanced features To provide outstanding performance in crowded environment, WAC6303D-S features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection. Unified access point- Fits all businesses Stay standalone mode if you’re a start-up, needing just few APs; convert to controller-managed mode when business grows up, requiring hundreds of APs.

• 2.4 GHz: Y
• 5 GHz: Y
• Maximum data transfer rate: 1300 Mbit/s
• Wi-Fi data rate (max): 1300 Mbit/s
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Throughput data rate: 1600 Mbit/s
• Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3au,IEEE 802.3az,IEEE 802.3u
• Channel bandwidth: 80 MHz
• MIMO: Y
• MIMO type: Multi User MIMO
• Modulation: 16-QAM,64-QAM,256-QAM,BPSK,CCK,DBPSK,DBQSK,QPSK
• Wi-Fi Multimedia(WMM)/(WME): Y
• VLAN support: Y
• Maximal-Ratio Combining (MRC): Y
• Maximum Likelihood Detection (MLD): Y
• Cyclic Shift Diversity (CSD): Y
• Quality of Service (QoS) support: Y
• Receiver sensitivity: -103 dBm
• Security algorithms: 802.1x RADIUS,WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA2-PSK
• MAC address filtering: Y
• Number of SSID supported: 16
• DHCP client: Y
• Management protocols: SNMP v2c/v3
• Ethernet LAN (RJ-45) ports: 2
• DC-in jack: Y
• Power over Ethernet (PoE): Y
• Input voltage: 100 - 240 V
• Input frequency: 50/60 Hz
• Output voltage: 12 V
• Output current: 2 A
• Placement: Ceiling, Wall
• Product colour: White
• Cable lock slot: Y
• Cable lock slot type: Kensington
• Internal: N
• Antenna gain level (max): 4 dBi
• Operating relative humidity (H-H): 10 - 90%
• Operating temperature (T-T): -20 - 60 °C
• Storage temperature (T-T): -40 - 70 °C
• Storage relative humidity (H-H): 10 - 90%
• Width: 211 mm
• Depth: 223 mm
• Height: 39 mm
• Weight: 800 g
• Mounting kit: Y
• Package width: 251 mm
• Package depth: 247 mm
• Package height: 55 mm
• Package weight: 1.04 kg
