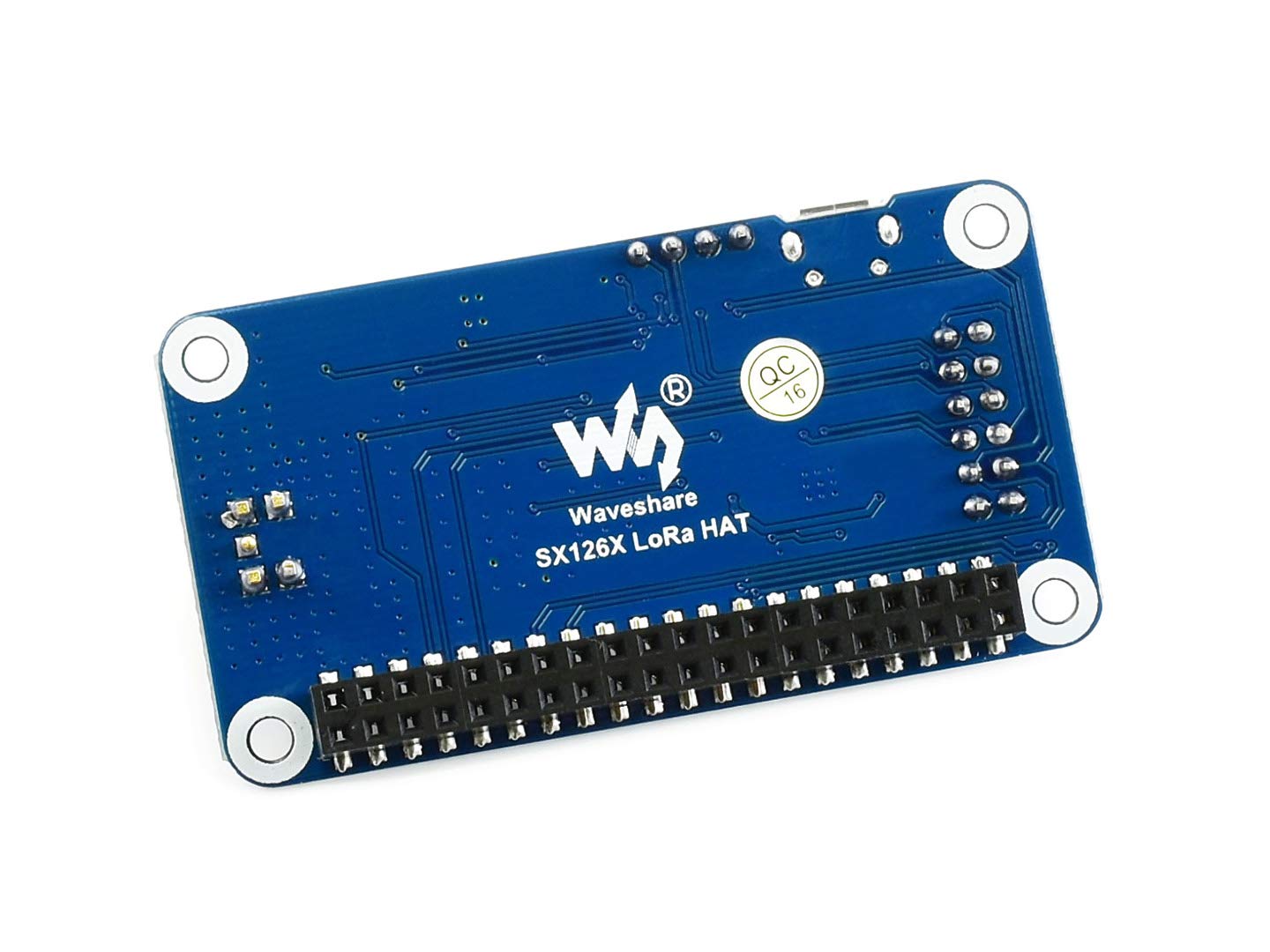

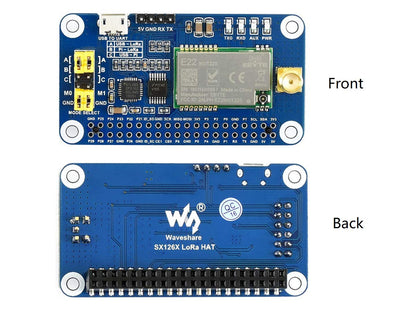

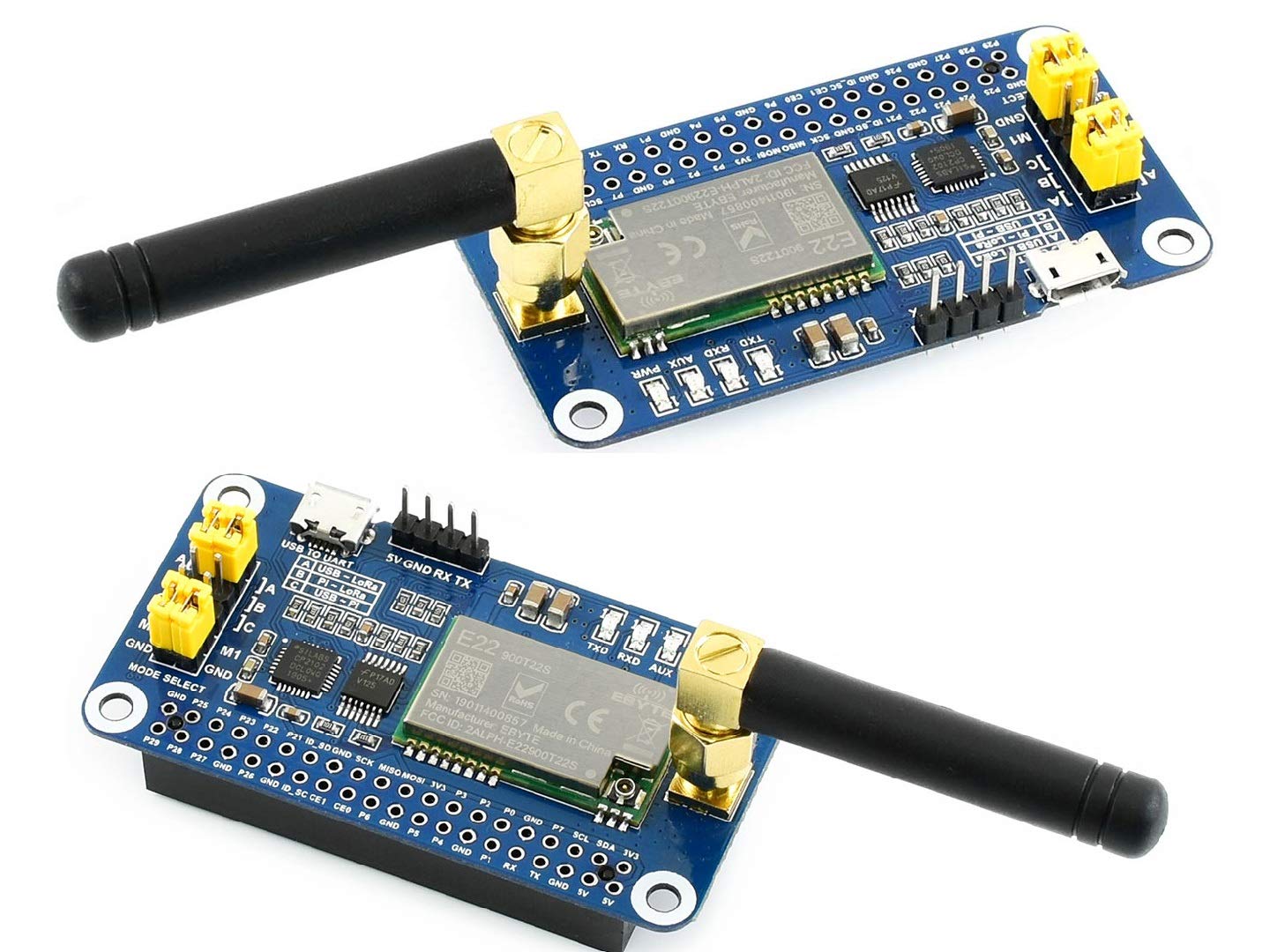

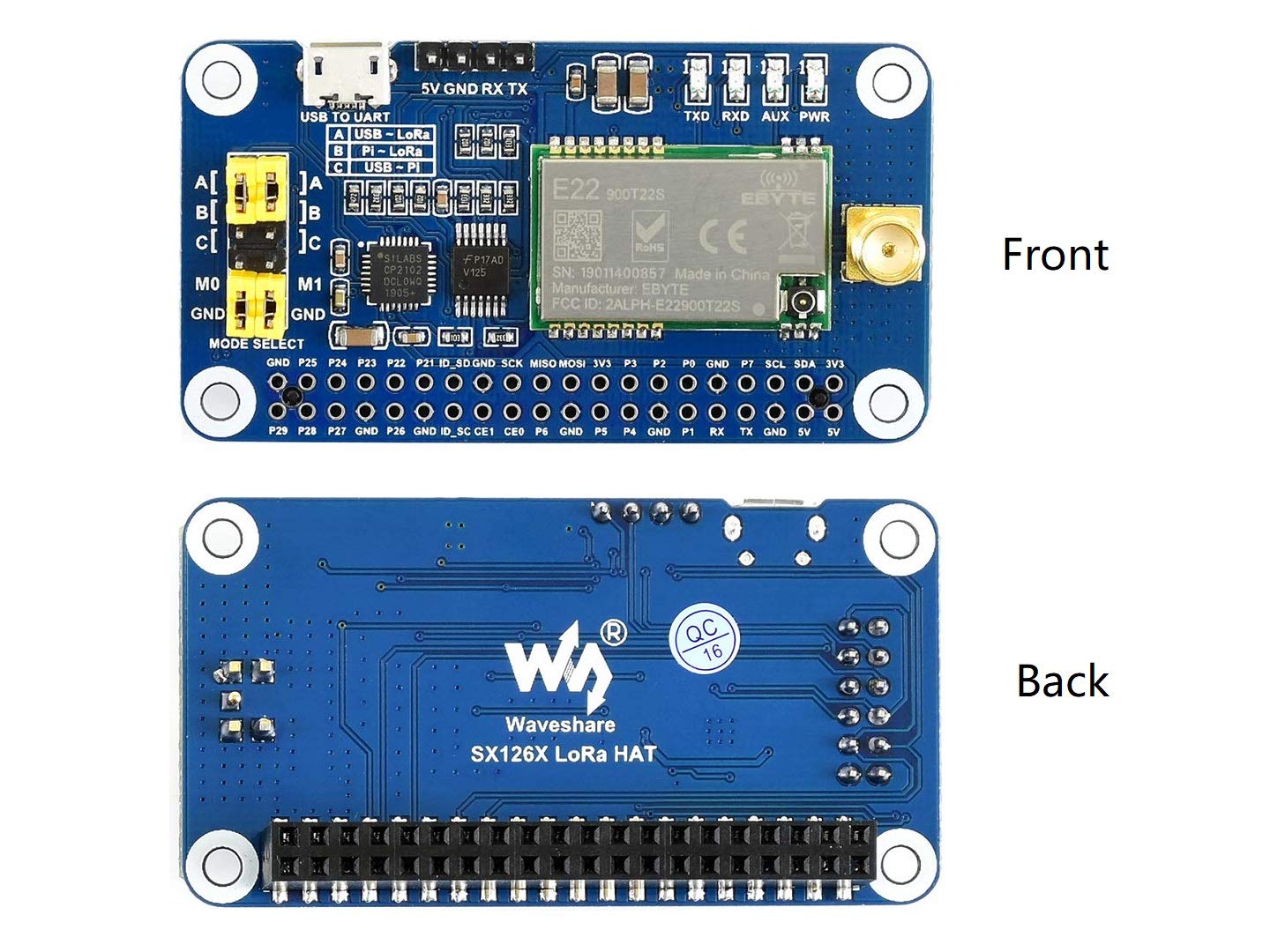

SX1262 LoRa HAT for Raspberry Pi, Spread Spectrum Modulation, 915MHz Frequency Band,only used in America, Oceania, Asia
Features

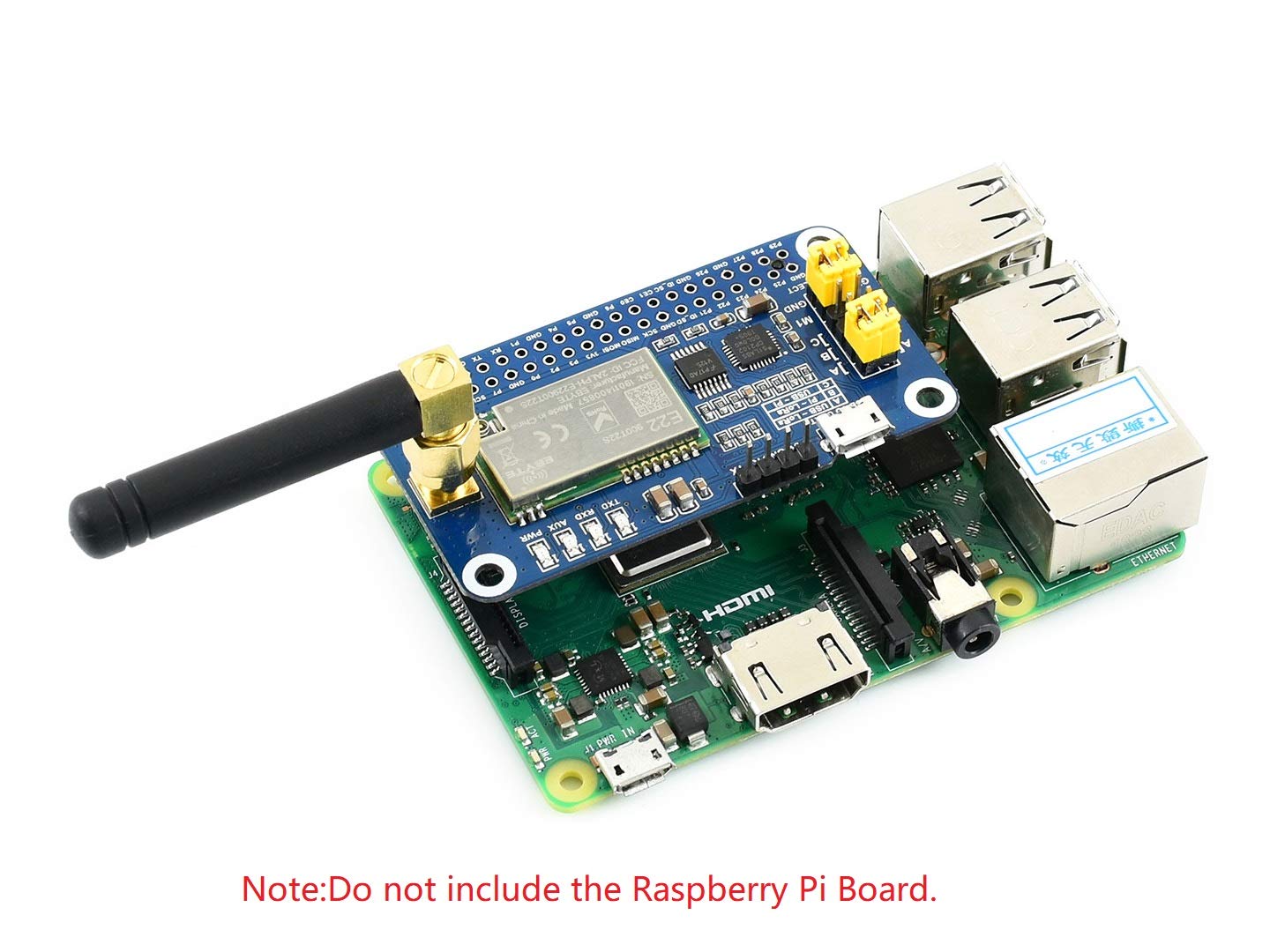

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Onboard CP2102 USB TO UART converter, for serial debugging
Brings the UART control interface, Compatible with connect host boards like Arduino/STM32
4x LED indicators, easy to check the module status
LoRa spread spectrum modulation technology, up to 81 available signal channel, longer communication distance, more robust to interference
Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region
Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications
Customizable communication key which won't be retrieved, greatly improves the security of user data
Supports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment
Supports RSSI signal intensity indicating, for evaluating signal quality, tuning the network
Supports wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter
Supports fixed-point transmission, broadcast, signal channel monitor
Comes with development resources and manual (examples for Raspberry Pi/STM32)

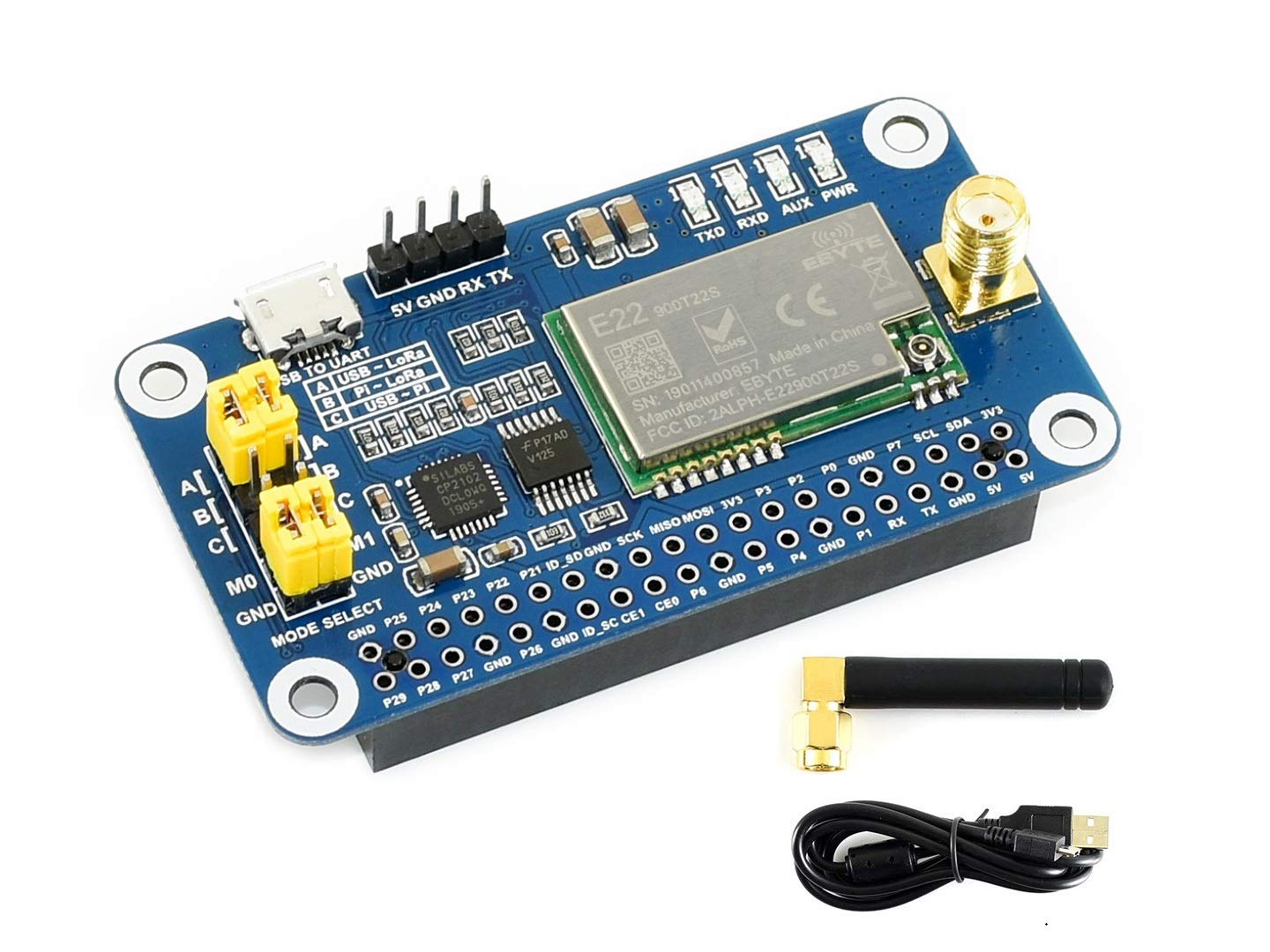

Package Content
SX1262 915M LoRa HAT x1
USB type A plug to micro plug cable x1
915MHz antenna x1

Note
More resources and support you need , please contact us via Amazon message to get , thanks .
